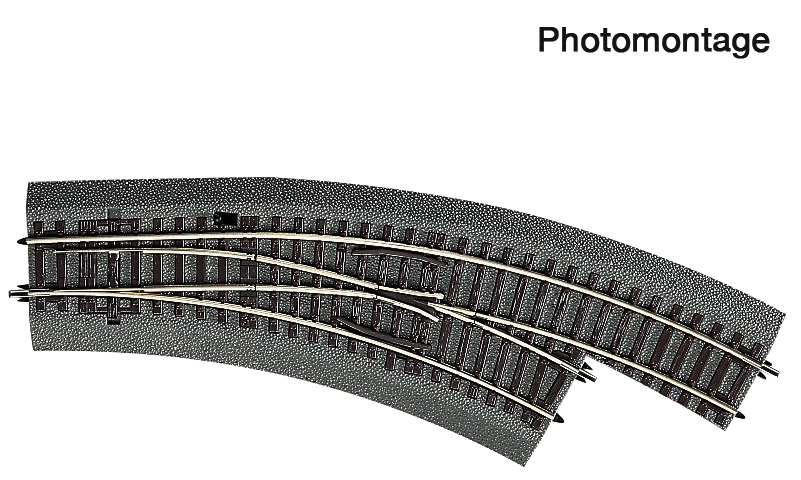

Roco 42561 Curved track switch, right BWr2/3, H0

Curved turnout right BWr2/3 with support, manually operated.

Radius of main track and siding 358 mm (R2), curve angle 30°, polarization pre-installed.

Suitable electric turnout drive: 42620 or 42624.

■ Heart and wheel guidance completely revised
■ Prototypical passage of the frog possible

Track width in the heart area according to NEM
■ Pre-installed polarization of the turnout heart

Note:
The curved turnouts R2/R3 are only conditionally suitable for scale-measured express wagons with a
length over
buffers of more than 300 mm, because the parallel track separation is narrowed at the turnout,
which causes problems if long wagons meet at the turnout.

Specifications:
Dimensions
Rail profile height Jan 02 mm
