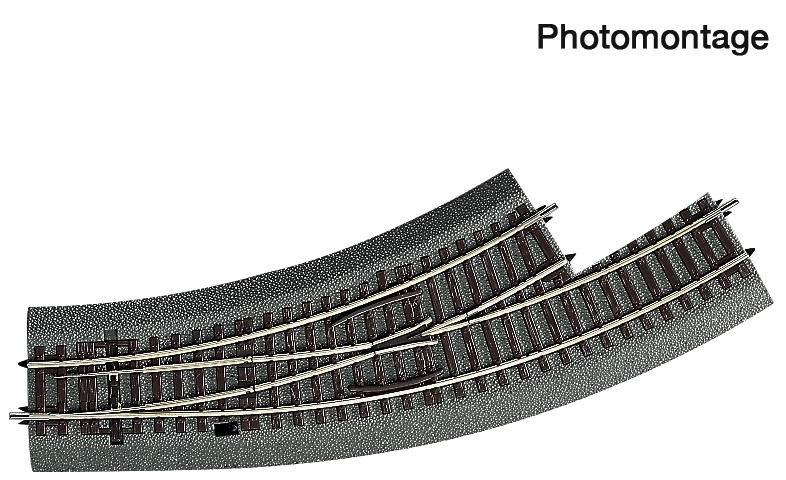

Roco 42560 Curved turnout, left BWI2/3

Curved switch left-handed BWl2/3 with ballast, manually operated.

Radius of main track and siding 358 mm (R2), curve angle 30°, polarization pre-installed.

Suitable electric switch drive: 42620 or 42624.

■ Seed and wheel guide completely revised

Possibility of prototypical passage of the frog

Groove width in the seed area according to NEM
■ Pre-installed polarization of the switch frog

Note:
The curved switches R2/R3 are only conditionally suitable for scale express cars with a length over
buffers of more than 300 mm, because the parallel track separation is narrowed at the switch, which
causes problems if long cars meet at the switch.

Specifications:
Measurements
Rail profile height Jan 02 mm
