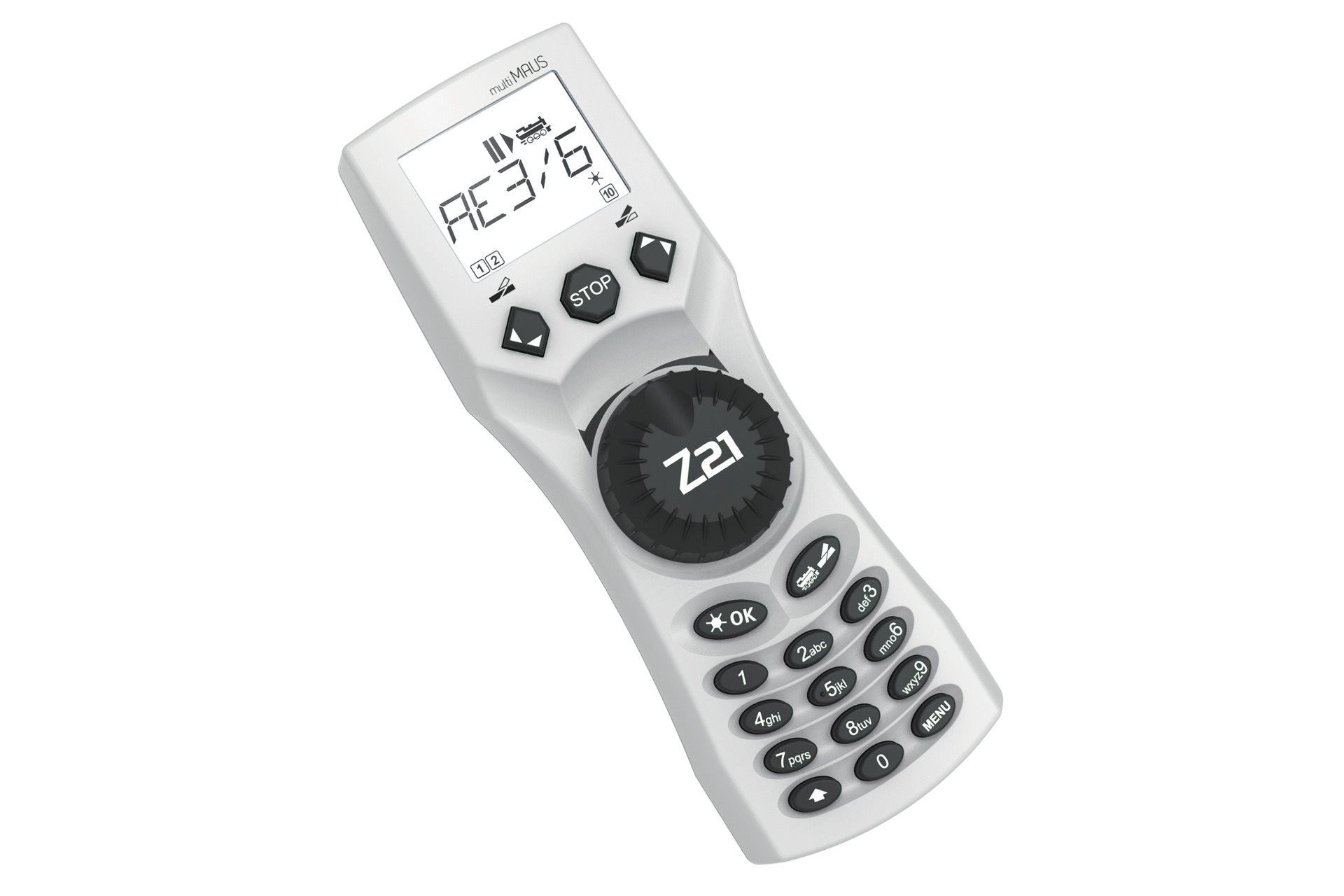

Roco 10835 Z21 multiMAUS

Z21 multiMAUS

Cheap control unit with many options. Several Z21 multiMAUS units can be operated on the system
simultaneously. Display with adjustable brightness.

Up to 9,999 locomotive addresses can be controlled by direct input; 64 of them can be stored in a database and
given names: e.g. B. 103RB (103 red-beige). Up to 31 functions (including headlights) can
be activated per locomotive, if the model is equipped with this.
The locomotives can be operated with either 14, 28 or 128 speed steps; On the one hand, this can be
set in principle, but if necessary it can be changed for each locomotive.

You can set your locomotive decoder according to your own ideas using two different
programming methods: The most important CV values ​​1 to 5 can be accessed directly via the key combination
"MENU" and 1 – 5, and the total of 1024 CVs can be accessed via the programming menu. Of course -
depending on the decoder design - all values ​​up to 255 can be programmed.
CVs 1 – 1024 can be read out in conjunction with the Z21 or a readout center.

Change mode:
The Z21 multiMAUS can switch up to 2,048 magnetic objects. These elements must have an electric
drive and be connected to a magnetic decoder. The magnetic accessory decoders are then programmed
electronically via the tracks.

Supported data transfer protocol: X-Bus 4.0 Slave

■ Firmware can be updated

Contents:
■ Z21 multiMAUS
■ Connection cable
■ Operating instructions
