Roco 10789 Z21 CDE-Booster Adapter

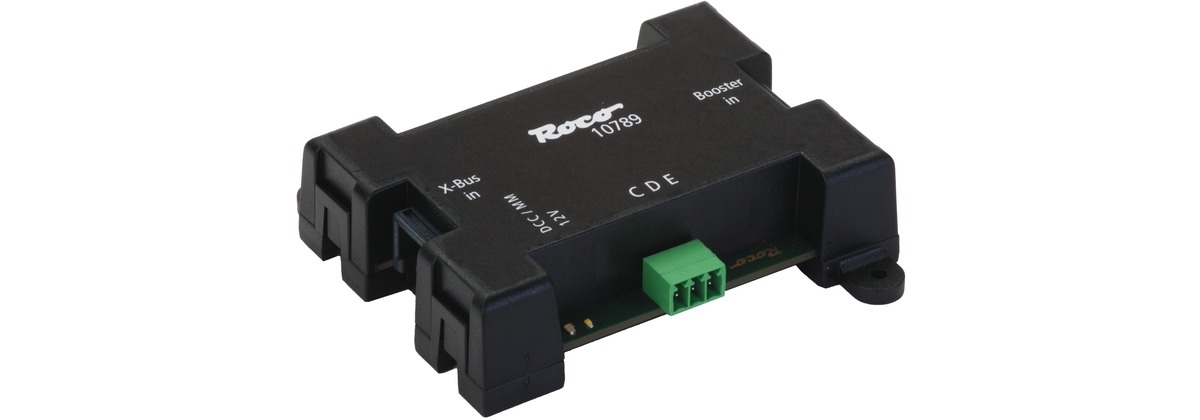

Z21 CDE booster adapter The booster adapter is used to connect up to 15 boosters with
CDE interfaces to the booster bus. There is an X-Bus connection to supply the adapter with
voltage. Status LEDs indicate the 12 V supply and an active CDE output stage. The adapter also has an
overcurrent or short-circuit cut-off on the CDE output.
The booster adapter can be used on the following control panels or amplifiers:
■ Digital amplifier (10764)
■ multiZENTRALEpro (10832)
■ z21 and z21 starter
■ Z21 (10820, 10822) Purpose of use: If the performance of our boosters is not sufficient
(e.g. large railways, gauge 0–IIm), a powerful CDE booster (e.g. Massod, Lenz, Tams)
can be connected to the booster bus of our control center via a CDE adapter or amplifier.
Contents:
■ Z21 CDE Booster Adapter
■ X-Bus cable
■ Operating instructions
