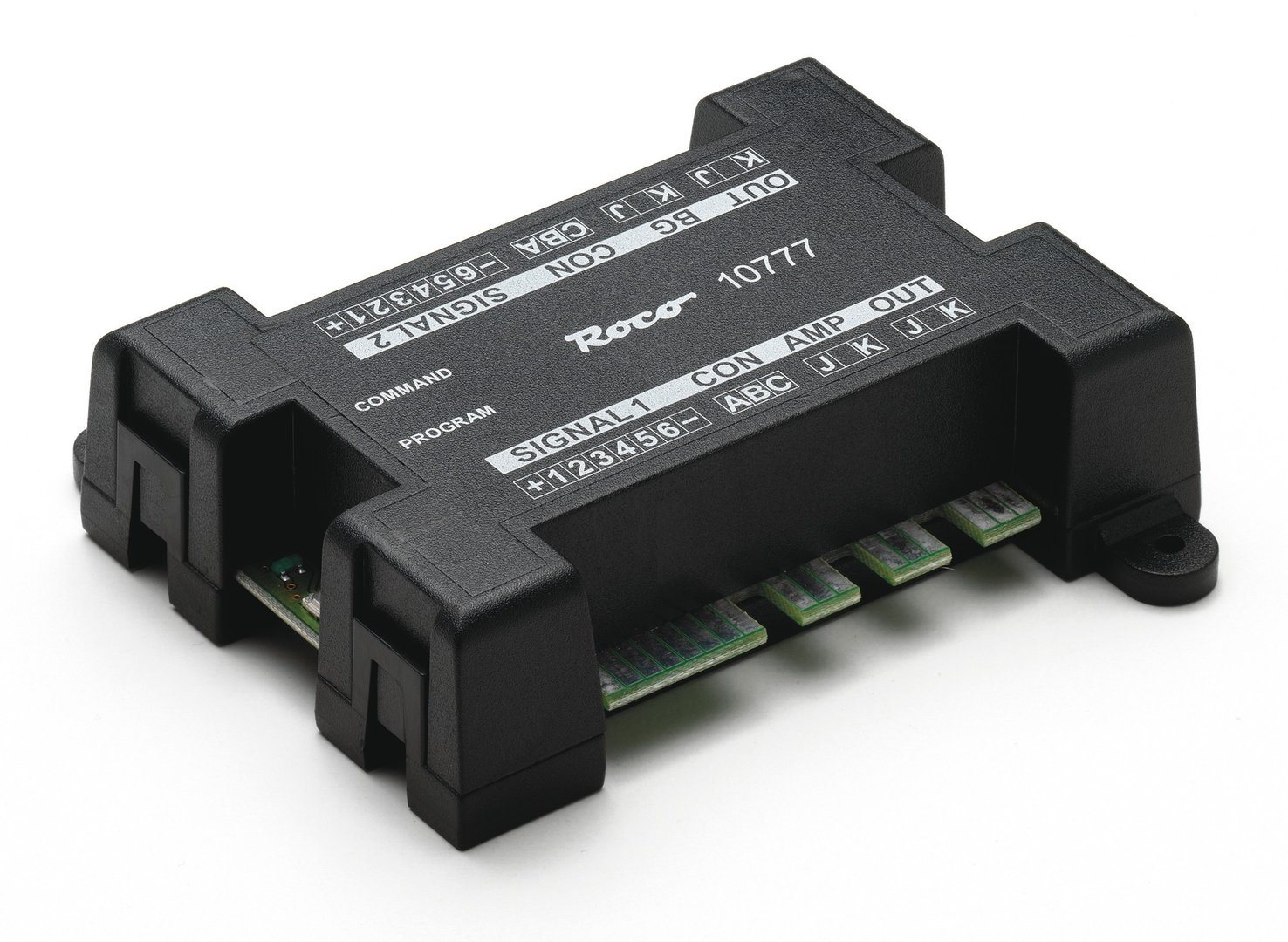

Roco 10777 Signal module for 4 signals

Item no.: 10777

Før135,00
Pris ved purchase of 1 Stk,94,50 Eur

Antal

Køb

In stock Lev. 2 days

Rating for Roco 10777 Signal module for 4 signals

The product is not yet rated

The signal module has 2 separate connections for two light signals with a maximum of 4 signal conditions each. 2 addresses are stored in the system for each connection, thus 4 addresses for each signal module.

Signals can be connected with lamps as well as with LEDs. Integrated logic switching for automatic block post operation.

In combination with the brake generator (10779) it is possible to automatically switch to a brake signal.

Connections:

? 2x separate connections for the signal stop section

? 1x input for power supply of the digital system (10761, 10762, 10764, 10765, 10820, 10822, 10805, 10806, 10807)

? 1x input for power supply of brake generator 10779

? 2x separate connections for 3 track switches / circuit tracks eachAll connections are short-circuit proof.Contents:

? Signal module

? 2 pcs. 8-pin connectors

? 2 pcs. 3-pin connectors

? Manual
