Märklin 60932 mfx high-efficiency electronic circuit with a sound effect generator.

Item no.: 60932

Før187,44
Pris ved purchase of 1 ,131,20 Eur

Antal

Køb

In stock

Rating for Märklin 60932 mfx high-efficiency electronic circuit with a sound effect generator.

The product is not yet rated

For diesel locomotives. This set is for converting Märklin H0 locomotives with built-in 6090,
60901, 60903 or 60904 high-efficiency propulsion to the new version with feedback function and
sound effects. The existing high-efficiency motor is retained, the
locomotive decoder is replaced and a loudspeaker is also installed.
12 typical
diesel locomotive operation sound effects are pre-programmed and can be activated according to the table.
The following special sound effects specific to the operation of the locomotive are present on this
decoder:
F7 = high horn tone.
F8 = low horn tone.
F9 = auxiliary diesel with constant speed.
F10 = sound of overpressure safety valve releasing air.
F13 = sound of doors closing.
F14 = engine start.
F15 = oil pump.

Also available are controllable functions including direct control without
acceleration/braking delay as well as 3 function outputs that can be assigned as desired,
one of which changes with the direction of travel.

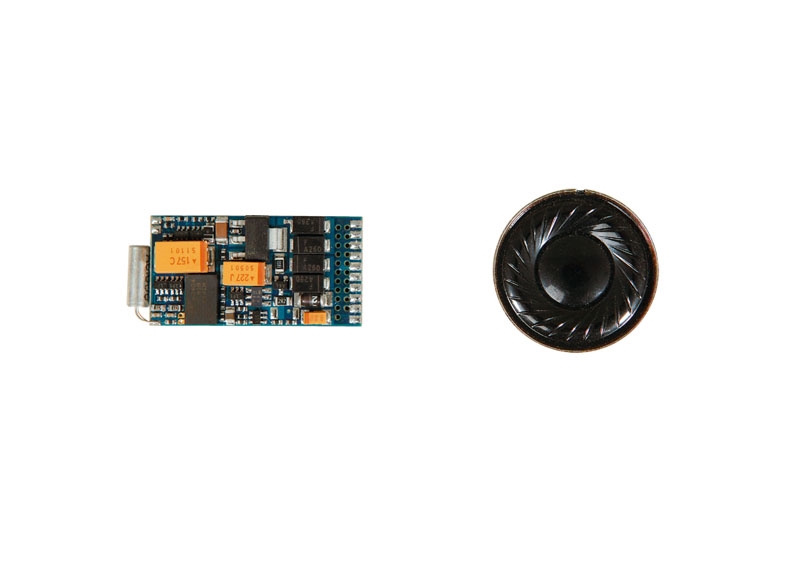

PCB dimensions 35 mm / 1-3/8" length x 15 mm / 9/16" width x 6 mm / 1/4" height.
Speaker diameter 22 mm / 7/8", height 3 mm / 1/8".
