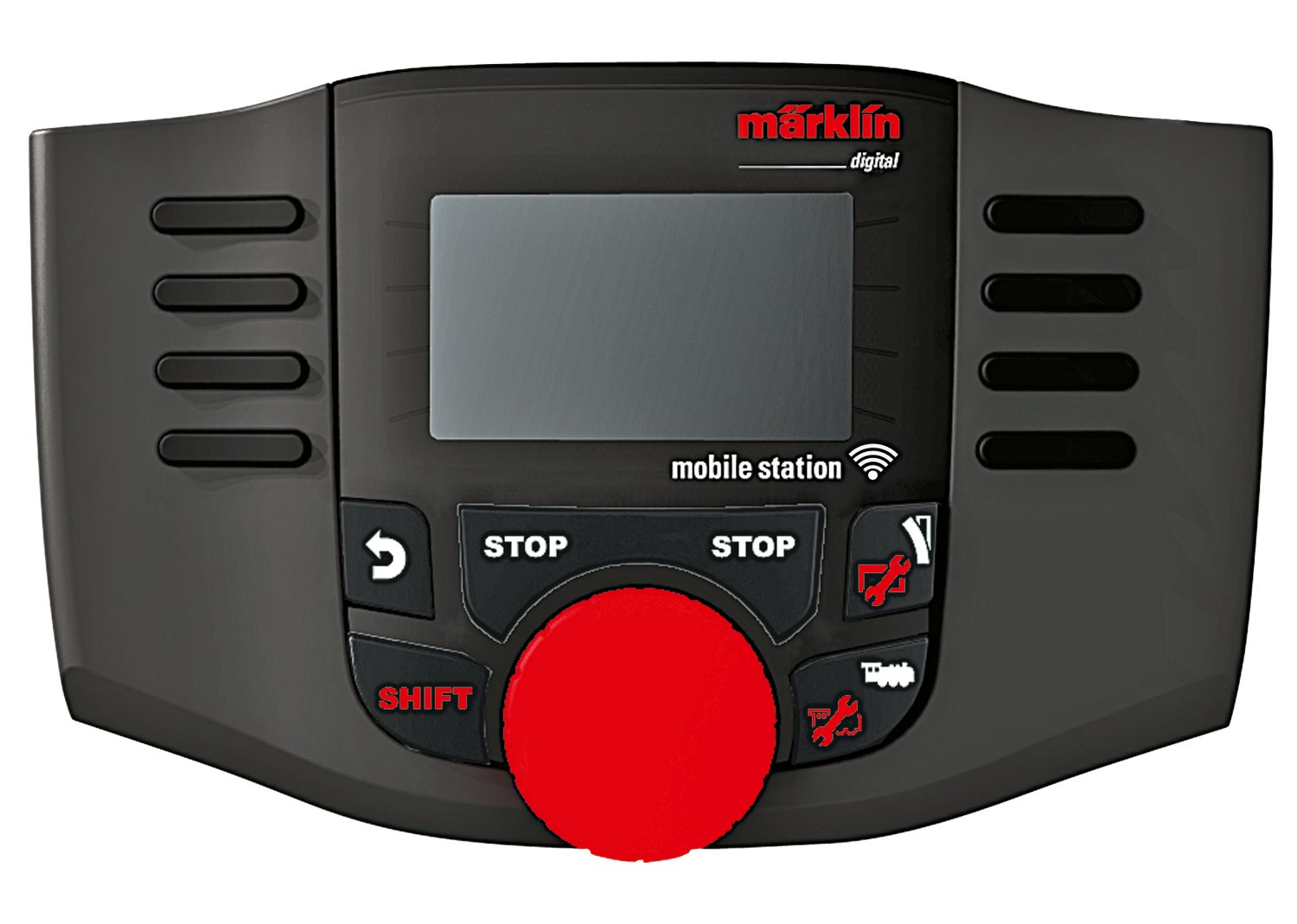

Märklin 60667 Mobile Station WLAN

Note: A CS2 or CS3 with WLAN connection or the WLAN 60117 receiver box is required as
receiver for the Mobile Station WLAN.
Digital handheld controller.
40 locomotives can be controlled directly.
Automatic registration of mfx locomotives.
Integrated locomotive database for selecting older Märklin/Trix/LGB locomotives.
Manual registration of MM and DCC locomotives via digital addresses possible.
Up to 32 locomotive functions can be switched, display of operating modes.
Self-explanatory function pictograms for mfx and database locomotives.
Up to 320 magnet elements can be switched.
Can be operated with one hand with the included handle (pop socket) on the back.
Display content rotates to match the position of the device.

Illuminated stop button to indicate the stop status.
Backlit black/white full graphic display.
Dimensions 160x100x42mm.

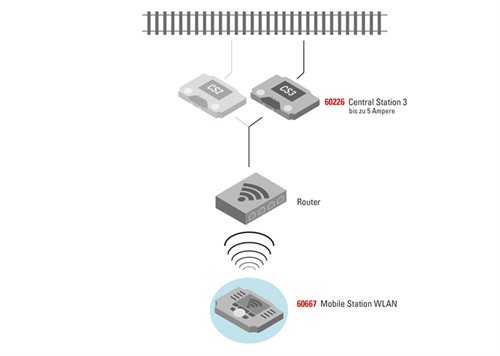

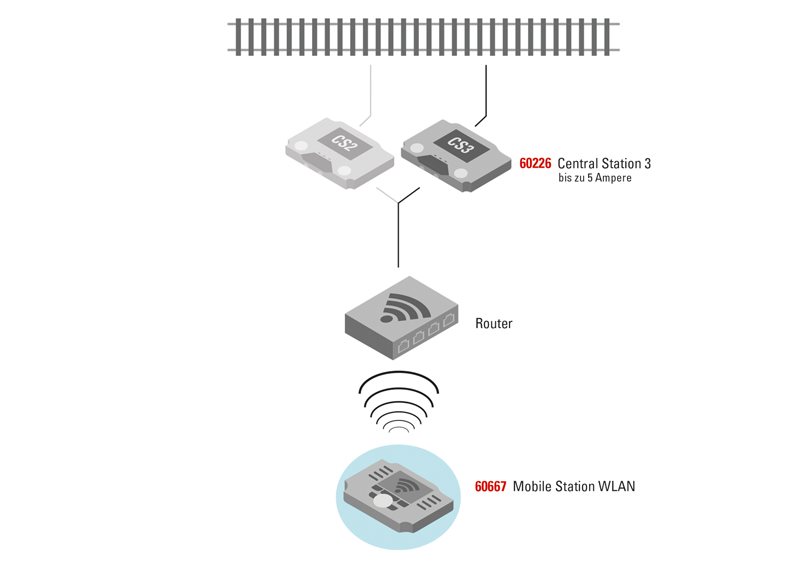

Wireless connection with a WLAN receiver box (60117) or with a central station (60216, 60226 and
60213-60215) if this is part of a WLAN-enabled network.
When connected to a central station, the Mobile Station WLAN can access its complete
locomotive list and the solenoids with addresses 1 to 320.

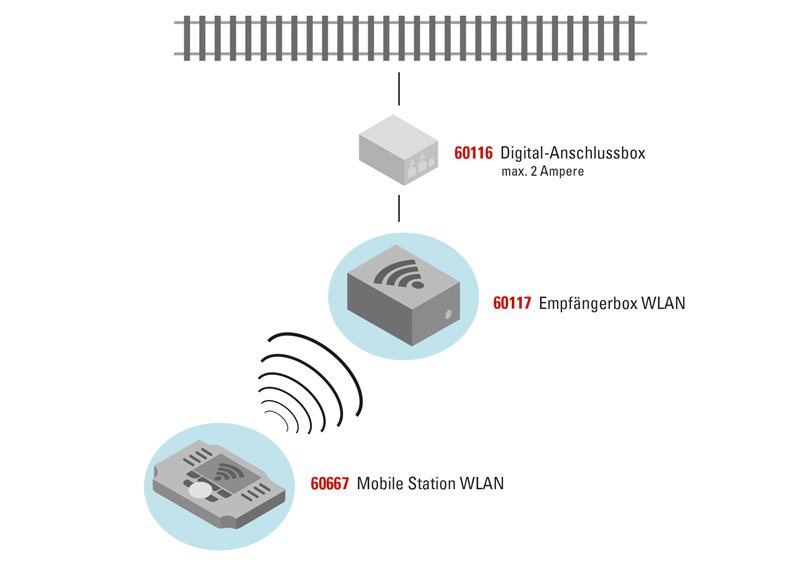

Up to four MS WLAN can be connected to a WLAN receiver box (item 60117).

4 AAA batteries are required to operate the device, these are not included in the package.

Highlights
Simple, comfortable operation
One-handed operation with included handle (pop socket) on the back.
Backlit graphic display with self-explanatory pictograms.
The display content rotates to match the position of the device.
Up to 32 switchable additional functions.
320 magnetic items switchable.
Easy connection to the WLAN receiver box and the central station.
Integrated Märklin digital locomotive database.
