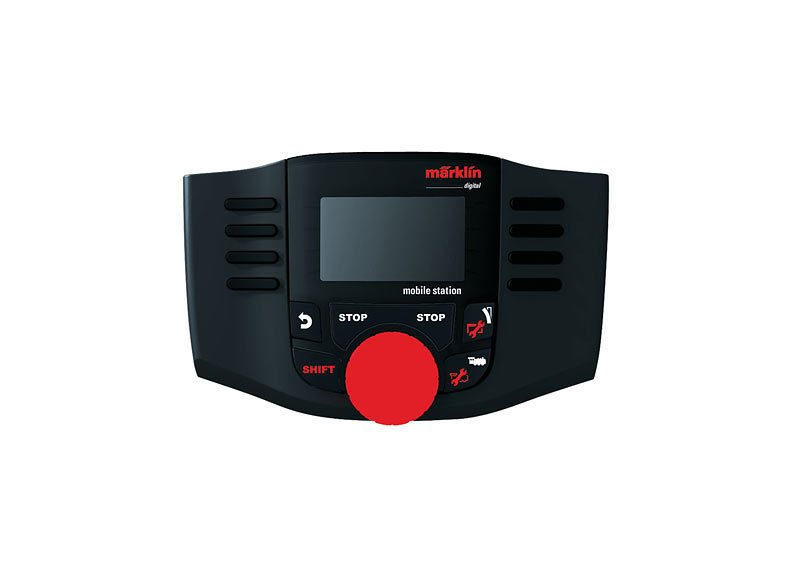

Märklin 60657 Mobile Station, Black

Note: To connect the mobile station, the connection box 60114 or 60112 (track 1) or 60116 or 60113 (H0) is required.

Digital hand controller control unit. 40 locomotives can be controlled in direct access*. Selection of locomotives from the integrated Märklin digital locomotive database or via digital addresses. Up to 32 locomotive functions* and 320 magnetic elements can be switched. Automatic display of the operating states in the integrated backlit b/w full graphic display using self-explanatory pictograms for MFX locomotives or when selecting locomotives from the integrated digital locomotive database. Integrated locomotive card reader. Red illuminated stop button. 1.9 A power section in the optional track box (60114 or 60112/60116 or 60113). Direct connection of 2 mobile stations (60657) to a track box (60112/60114 or 60113/60116), which then work together in master-slave mode. By using MS II Hubs (60122), the number of running units used can be increased to up to 10. When operating the mobile station on the main station (60216, 60226 and 60213-60215), the central station settings (complete locomotive list for the main station, all magnetic elements on the central station keyboard with their names) can be used. Driving and operating vehicles in the Motorola, MFX and DCC formats, switching magnetic items in the Motorola and DCC formats. Dimensions 160 x 100 x 39 mm. *After update 1.4.1 of 60216/60226 and update 3.55 of 60657/66955.

Highlights

Simple, comfortable operation.
Backlit graphic display with self-explanatory pictograms.
Up to 32 switchable additional functions.
320 magnetic objects can be switched.
Integrated locomotive card reader.
Easy wiring (plug and play) to the track box and main station.
Integrated Märklin Digital locomotive database.
