Märklin 42930 ICE express train car set

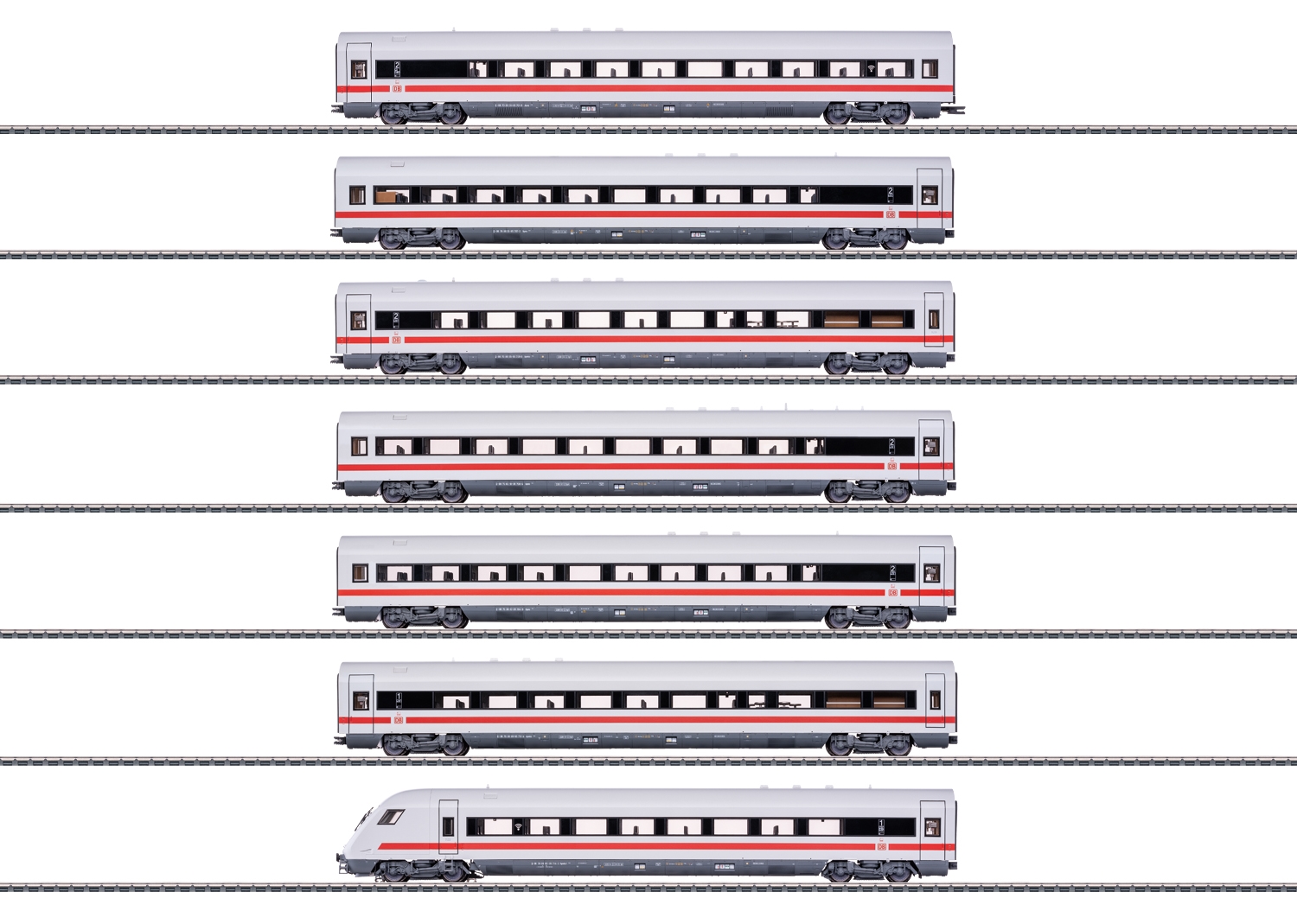

Prototype: ICE express train car set consists of 7 former suburban passenger trains on different
types in the ICE/IC color scheme of Deutsche Bahn AG (DB AG). 1x high-capacity express train cars
Apmz 116.0, 2nd class, order number 1. 1x express train car Apmz 116.1, 2nd class, order number 2.
1x express train car Apmkz 116.6, 2nd class, order number 3. 1x wide-body express train car Apmz 116.
4, 2nd class, order number 4. 1x express train car Apmz 116.2, 2nd class, order number 5. 1x express
train car Appmkz 116.6, 1st class, order number 6. 1x fast train control car Apmbzf 116.8, 1st
class, order number 7. Train service Cologne - Berlin Ostbahnhof, as ICE 1051. Operational status
after 2015.

Model: All cars with standard integrated indirect LED interior lighting, dimmable and digitally
switchable via decoder in the control car.
With buffer capacitors to bridge short current points. Control of the car with mfx digital decoder.
Three-light tip signal and two red tail lights conventional in operation, digitally switchable. High
beam, driver's cab lighting and control panel lighting in the control car can be switched separately
digitally. Current wire sections 4-pole couplings between the express train cars. On the express car
with order number 1, a 2-pole coupling is inserted in the standard axle as an electrical connection
to the locomotive. Lighting with maintenance-free warm white and red light-emitting diodes (LED).
Car 1 faces the locomotive with rubber bead transition. Detailed representation of the multi-colored
interiors. Recommended minimum distance 360 ​​mm, without observing the clearance profile. For larger
radii, the standard fitted skirt can be switched to a separate closed skirt in the coupling area at
the end of the car. A defined vehicle sequence is specified for the full functionality of the entire
train.
Length over buffer approx. 214 cm.

Highlights

Scale reproduction of the express train carriages in 1:87.

All carriages with standard LED interior lighting.

mfx Digital decoder in the control car
Light switches, main beam, cab and traction console lighting on the control car can be switched
digitally.
4-pin couplings between carriages, 2-pole separate coupling between locomotive and carriage 1.
