Märklin 39812 RABe 501 Giruno high-speed railcar set

Prototype: Electric high-speed train set EC 250 as RABe 501 "Giruno" of the Swiss Federal Railways
(SBB). 1 end car A (Bt1), 2nd class. 1 intermediate car F (B7), 2nd class, with disabled entrances
and pantographs. 1 intermediate car G (WR6) with restaurant area. 1 intermediate car H (A5), 1st
class, with disabled entrances and pantographs. 1 L (At2) end car, 1st class. Multi-system multiple
unit. Replica of EC 151, with cross-border rail route: Frankfurt/Main - Freiburg - Basel - Zurich -
Milano Centrale. Train number RABe 501 022, with coat of arms of the canton of Vaud. Operating
condition around 2024.

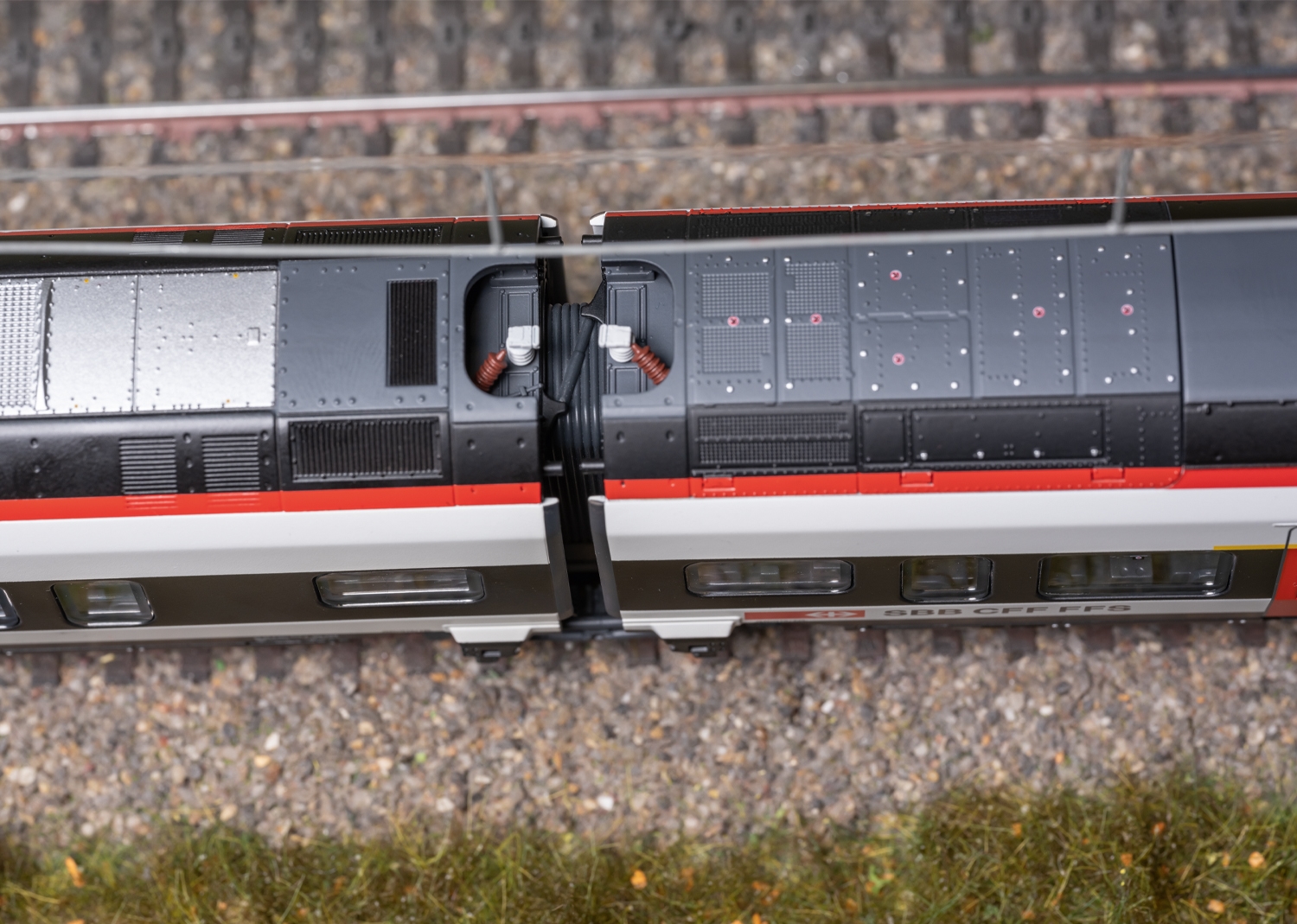

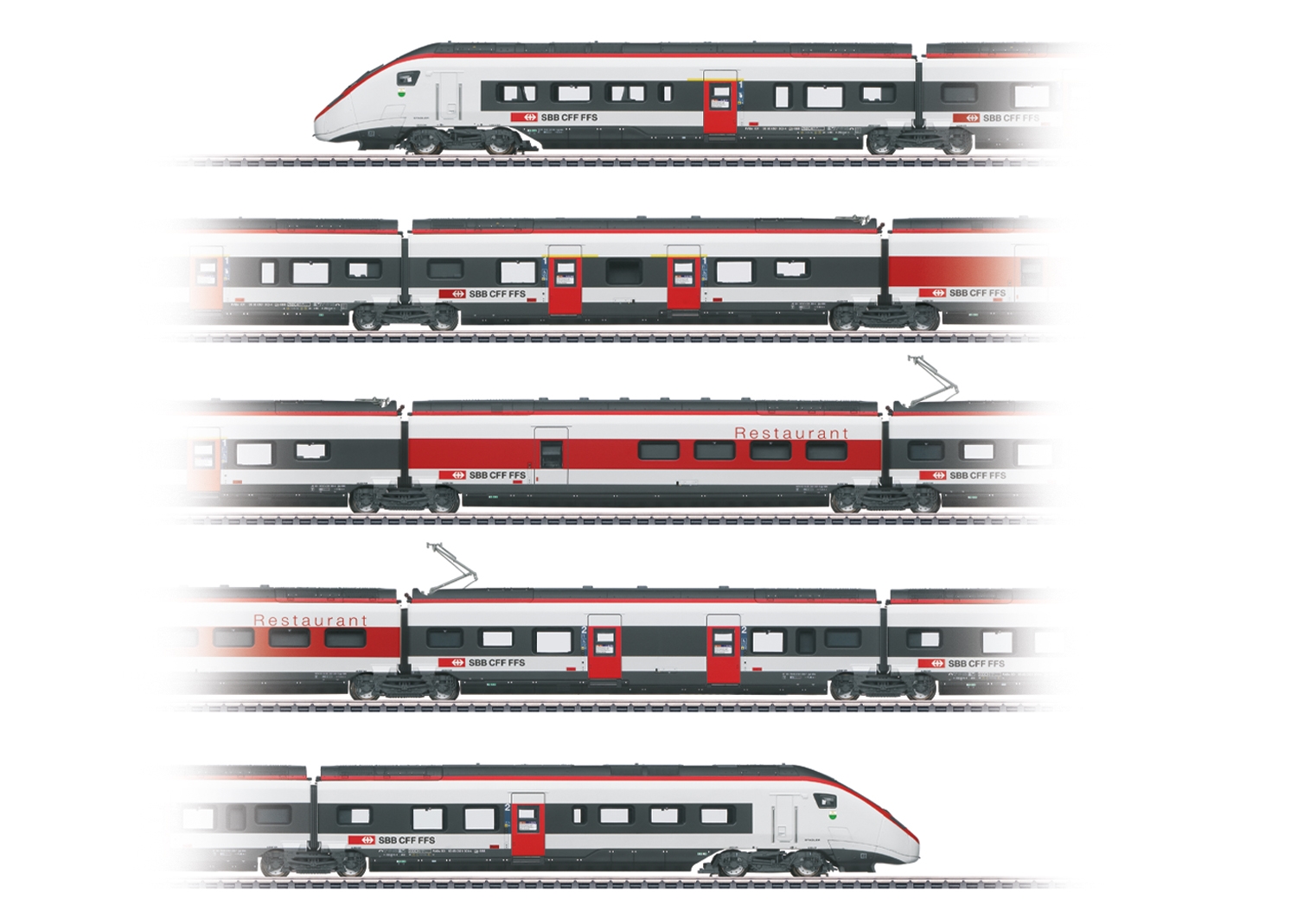

Model: 5-piece basic set. Restaurant car G and the two intermediate cars F and H, arranged on the
left and right, are permanently connected to each other via the Jakobs bogies. With mfx+ digital
decoder and extensive sound and light functions. Controlled high-performance drive with flywheel
centrally installed in the restaurant car. All 4 axles in both Jakobs bogies to the left and right
of the restaurant car are driven by cardan. Traction tires. The driver's cabins on the end cars with
interior equipment. Direction-dependent power supply via the respective front car. Guided tour on
the Jakobs bogies. Three-light headlights and two red taillights, which change depending on the
direction of travel, can be controlled digitally as conventional. Can be switched to a white
taillight (switch to Swiss light). Other separately switchable light functions. Interior lighting
installed as standard. Interior lighting is supplied via the continuous electrical connection to the
entire train. In addition, the cabin and control panel lighting can each be controlled separately
digitally. All lighting with maintenance-free warm white and red light-emitting diodes (LEDs). The
pantographs on the intermediate cars F and H can be raised and lowered separately as a digital
function. Scale replica. Minimum driving radius 360 mm. Length of the basic set approx. 112 cm.

Highlights

LED interior lighting installed as standard.

The lighting in the driver's cabin and control panel can be controlled digitally.

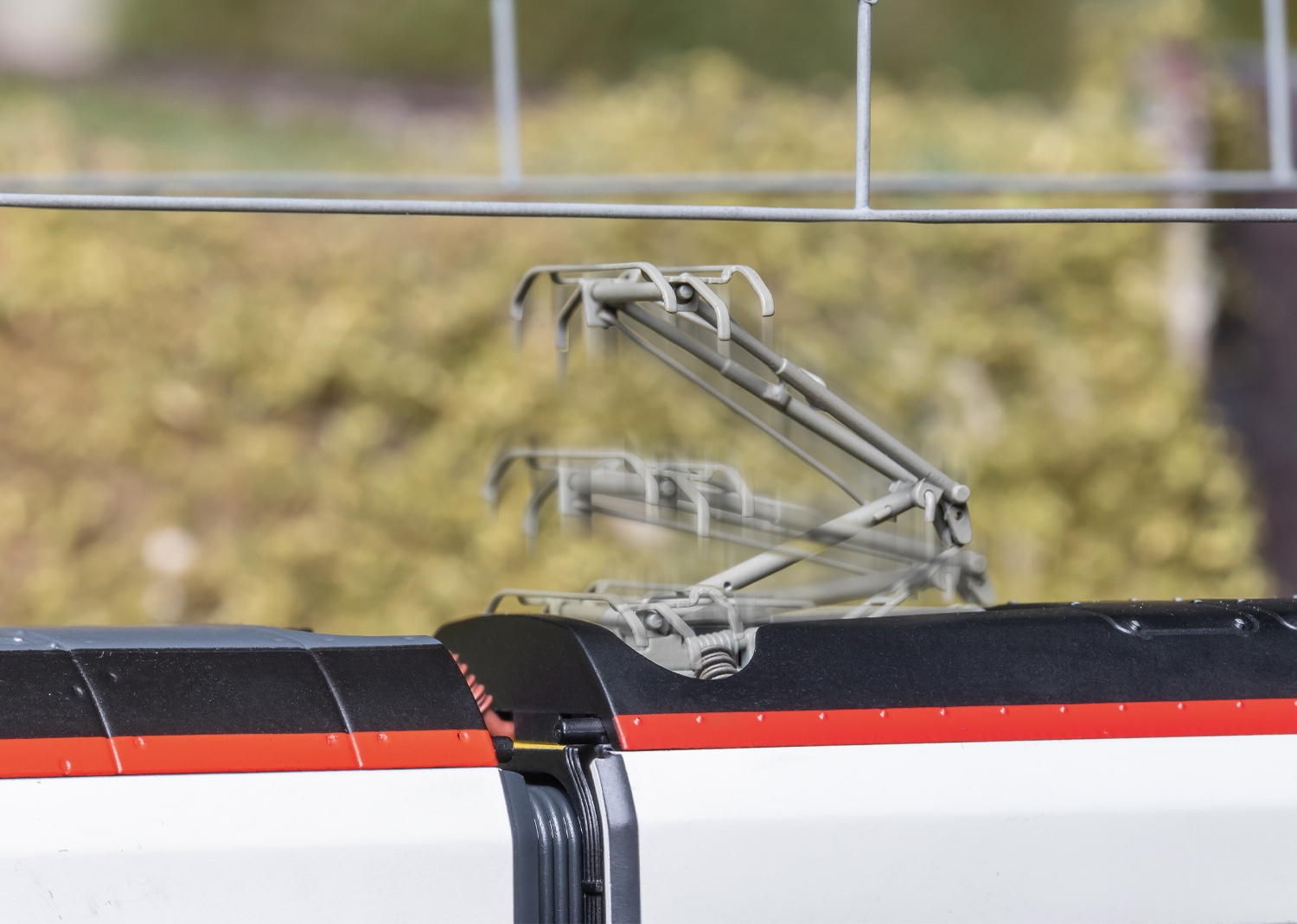

The pantograph on the intermediate cars F and H can be raised and lowered via digital function.
MFX+ decoder with extensive light and sound functions.
Cross-border train route: Frankfurt/Main-Freiburg-Basel-Zürich-Milano Centrale.
Train number RABe 501 022, with the coat of arms of the Swiss canton of Vaud/Vaud.

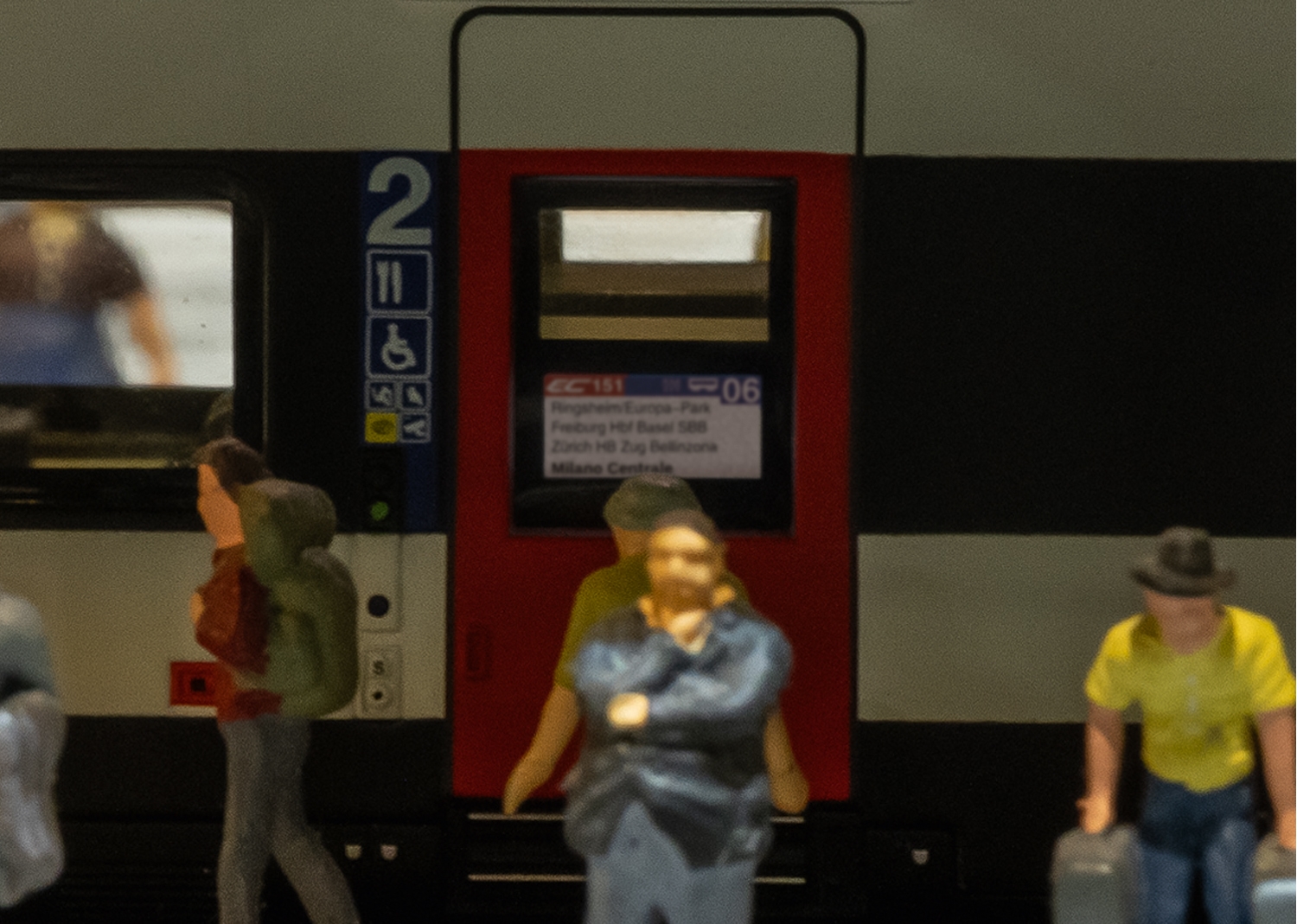

Illuminated train destination displays in the doors are switched off after the train has started.
