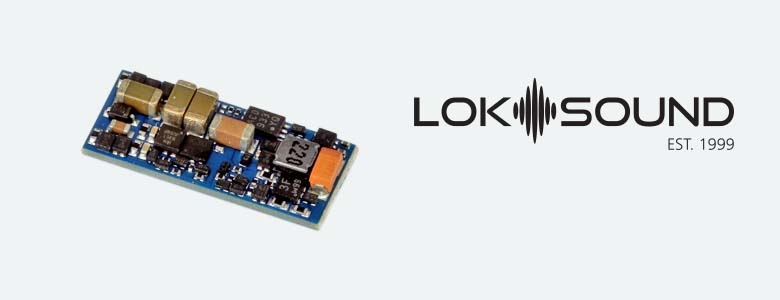

ESU 58914 LokSound 5 Nano DCC »Blank decoder«, PluX16, size: N, TT

The LokSound 5 Nano DCC decoder is a pure DCC decoder. The LokSound 5 Nano DCC is made for the North American and Australian market. It is a pure DCC decoder that supports RailComPlus and can also be used on DC systems. Please note that the LokSound 5 Nano DCC decoder does not come with a speaker.

Modes The LokSound 5 Nano is a "purebred" DCC decoder. 14 to 128 running steps
are just as obvious as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus®, the decoders register completely automatically with a suitable digital center. It masters all DCC programming methods and thanks to RailCom®, CV values ​​can be read on the main track with suitable control panels. There are auxiliary registers for control panels that can only program CVs from 1-255. The LokSound 5 Nano decoder detects Märklin® braking distances as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake block blocks or with equal voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An automatic ABC train allows automatic commutation between two stations. The LokSound 5 Nano can be used on analog DC railways.
Functions
Despite its small size, the LokSound 5 Nano has 6 amplified function outputs as well as a logic level output as a solder pad. All important lighting functions are available. The brightness of each output can be set separately. The decoder controls automatic start-up and switch-off when disconnecting for ROCO®, Krois® and Märklin telex® couplings.
Motor
The motor control of the LokSound 5 Nano has a variable PWM clock frequency from 10 kHz to 50 kHz, which ensures super-quiet operation, especially for bell-armature motors - the typical "hum" is a thing of the past. The load control can be adapted to difficult cases with up to 10 CVs. The unique "Autotune" function allows the decoder to be automatically measured in relation to the motor. The LokSound 5 Nano DCC Direct Decoder delivers up to 0.75A of motor power.
Protection
Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible.
